Дънна платка ASRock B760M Pro RS DDR5

Name: Дънна платка ASRock B760M Pro RS DDR5
Brand: ASROCK
SKU: B760M PRO RS
Price: 120.53 EUR
Availability: InStock

120,53 €

с ДДС

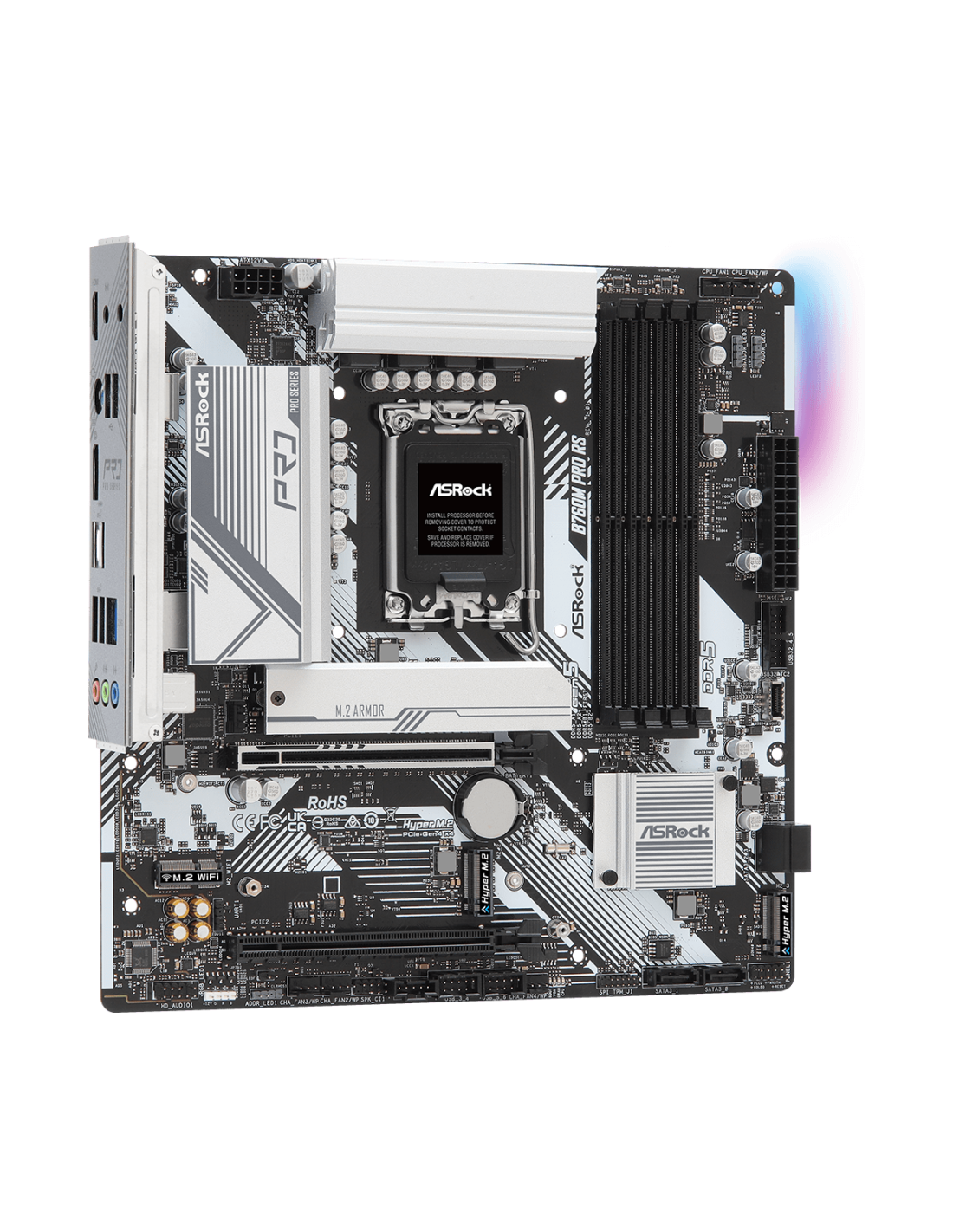

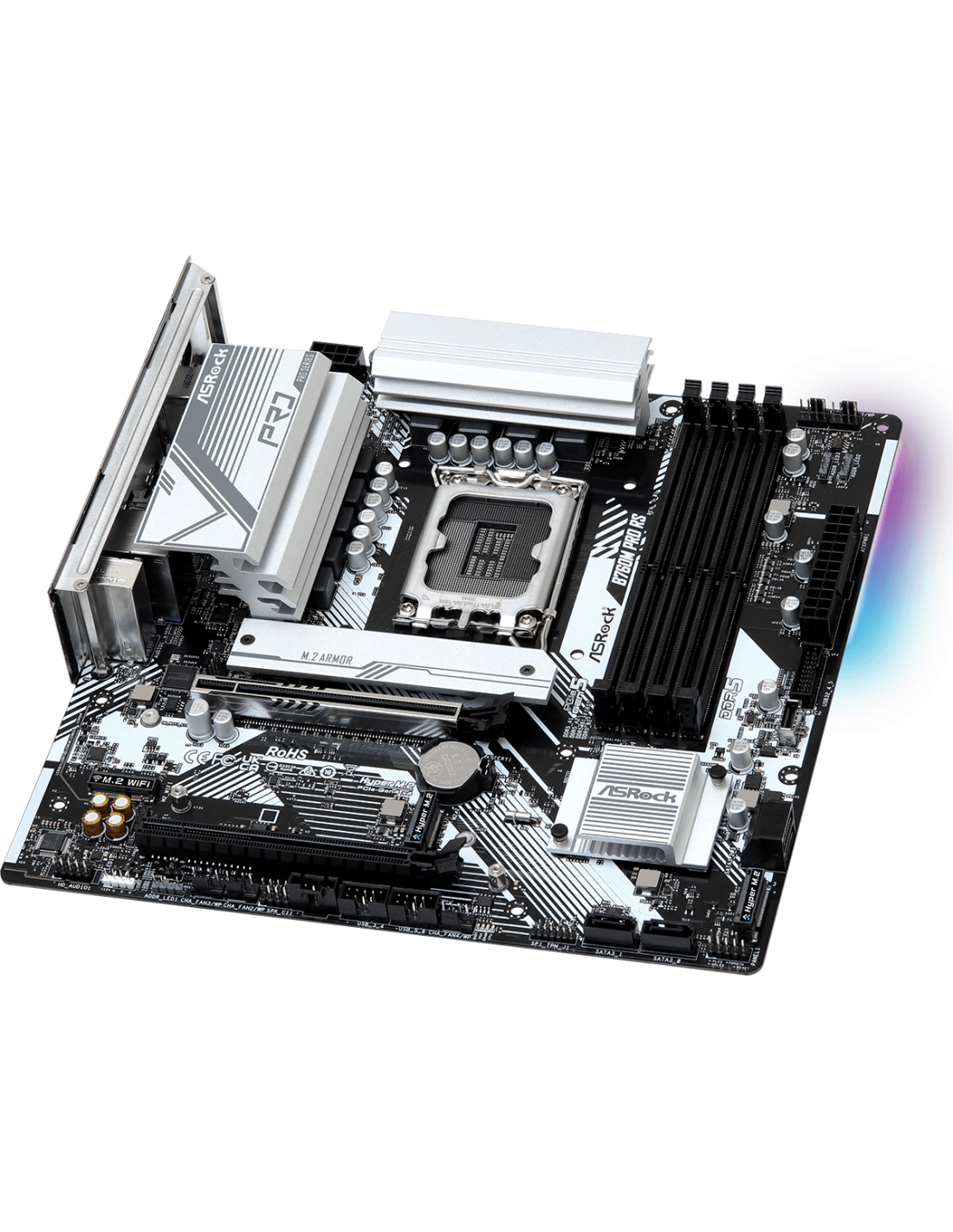

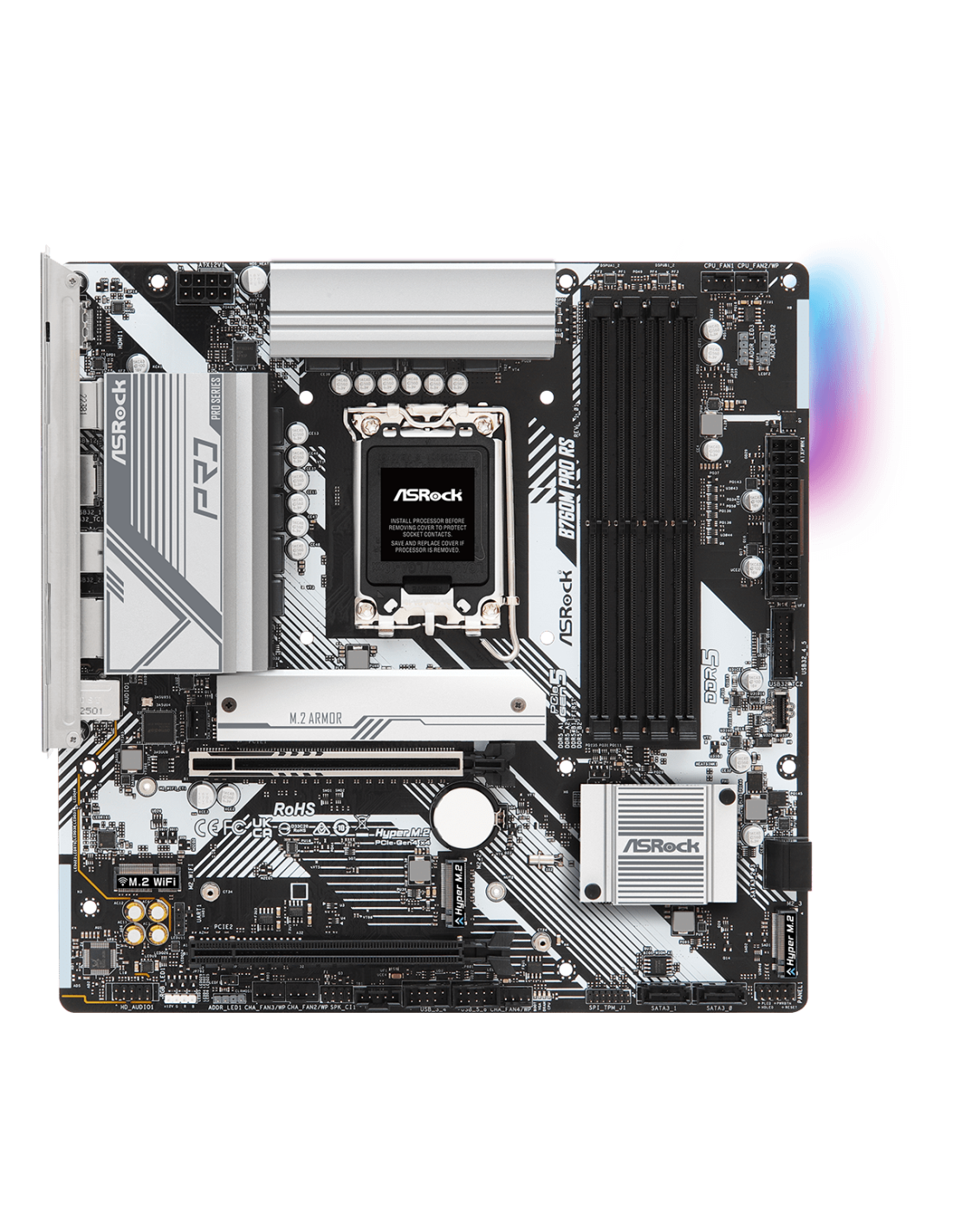

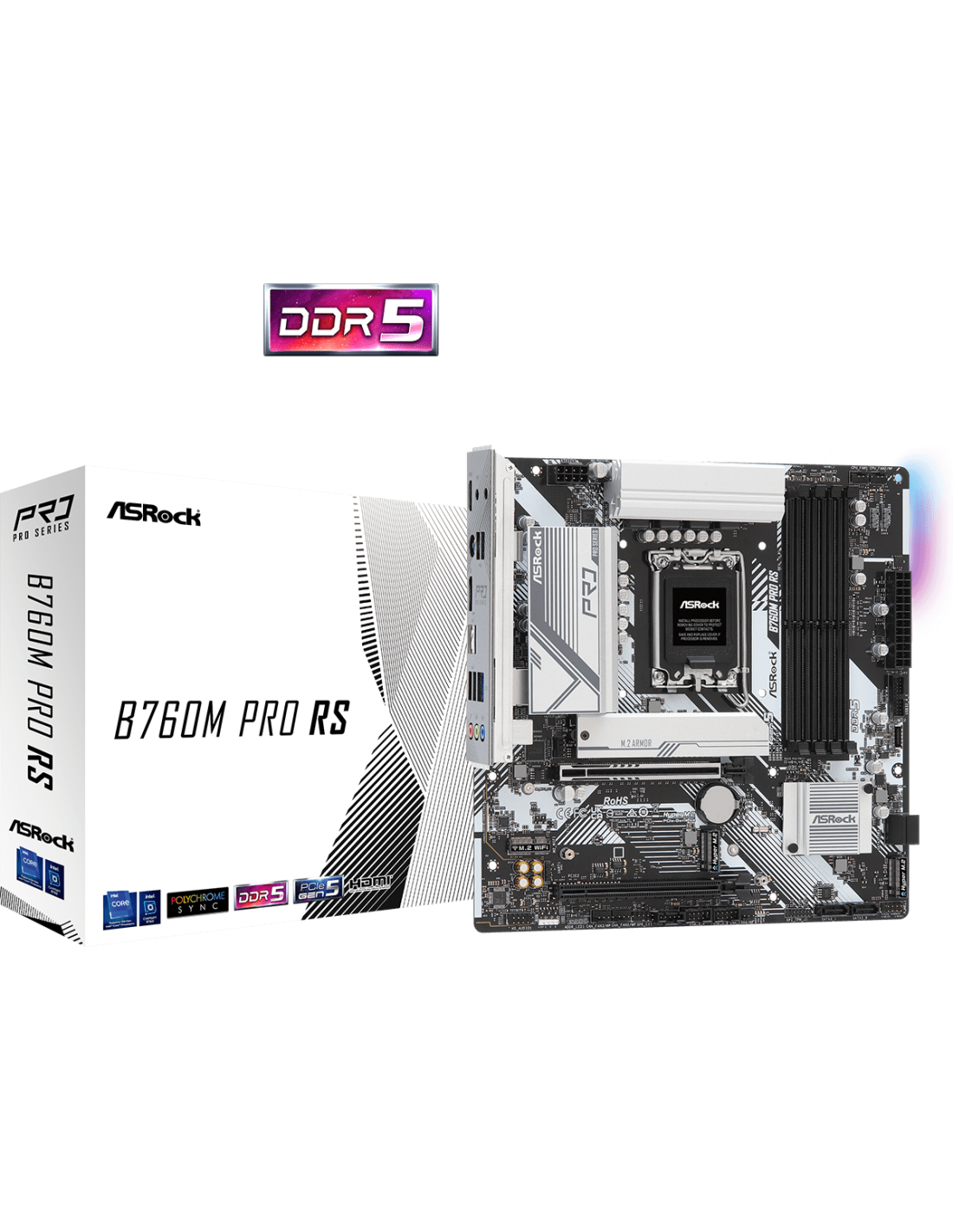

Дънна платка ASRock B760M Pro RS, LGA1700, DDR5, mATX

Supports 13th Gen & 12th Gen Intel^® Core™ Processors (LGA1700)
7+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

Чипсет: Intel b760
USB портове: 1 x usb 3.2 gen2 type-c
2 x usb 2.0
3 x usb 3.2 gen 1
Поддръжка на raid: Supports raid 0, raid 1, raid 5 and raid 10 for sata storage devices
Брой слотове памет: 4
Конектор захранване: 1 x 8 pin 12v power connector (hi-density power connector)
1 x 24 pin atx power connector (hi-density power connector)
Поддържани процесори: 12th generation intel
13th generation intel

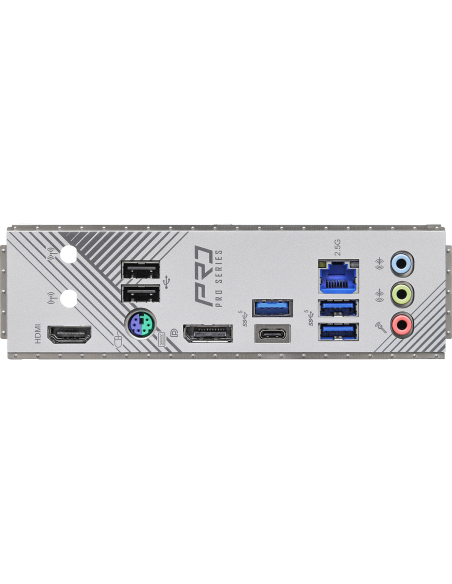

Свързаност: 1 x display port
1 x hdmi
1 x ps/2 mouse/keyboard
1 x rj-45
2 x sma antenna connectors
3 x audio jacks
Сокет: 1700
Поддържана памет: Ddr5
Максимален капацитет поддържана памет: 128 gb
Вграден lan: 1 x 2.5 gigabit lan 10/100/1000/2500 mb/s (dragon rtl8125bg)
Максимална честота памет: 7200(oc) mhz
Поддръжка на dualchannel: Yes
Вградено аудио: 7.1 ch hd audio (realtek alc897 audio codec)
Nahimic audio
Supports surge protection
Слотoве pci-e x16: 1 x pcie 5.0 x16
Интерфейс serial ata: 4 x sata3 6.0 gb/s
М2 слот: 1 x hyper m.2 socket (m2_1, key m), supports type 2242/2260/2280 pcie gen4x4
2 x hyper m.2 socket (m2_2,3 key m), supports type 2280 pcie gen4x4
Слотoве pci-e x1: 1
Форм фактор.: Micro atx - 24.4 x 24.4 cm
